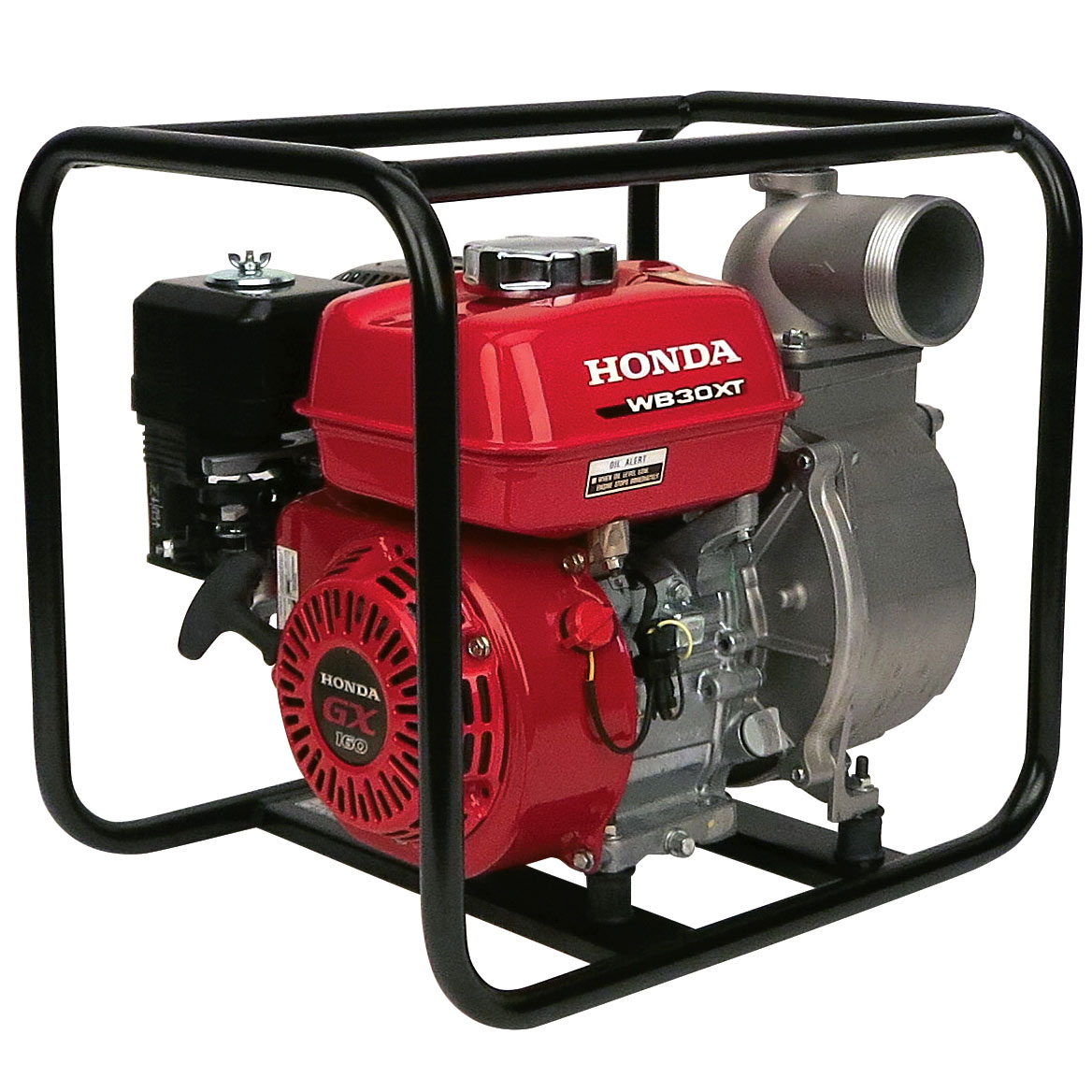

Honda WB30XT3C1

3″ general purpose water pump

Compare

$799.00

Pay Over Time

Compare

Description

Highlights –

  • 290 gal./min. capacity
  • Silicon carbide mechanical seal
  • Cast iron volute and impeller

Features –

    • Easy starting Honda OHV commercial engine
    • Durable silicon carbide mechanical seal
    • 4 vane high efficiency impeller
    • Cast iron volute
    • Heavy duty full frame protection
    • Isolation mounted engine and pump
    • Protected by Honda Oil Alert®
    • 3 year residential/commercial warranty
Engine GX160
Displacement 163cc
Bore and stroke 2.7" x 1.8"
Compression Ratio 9.0:1
Oil Alert Std
Pump Type Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 150 sec @16.4 ft.
Drive system Direct
Discharge capacity 290 gal/min
Suction port diameter3" NPT
Discharge port diameter3" NPT
Total head lift 85 ft.
Suction head lift 25 ft.
Maximum pressure 37 psi
Solids handling N/A
Dimensions (LxWxH)20.1"x 15.2" x 17.9"
Dry weight 57 lb.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge1.9 hr
Strainer Part #78325-YG4-000
Residential Warranty 3 years
Commercial Warranty 3 years
CA Compliant Yes
