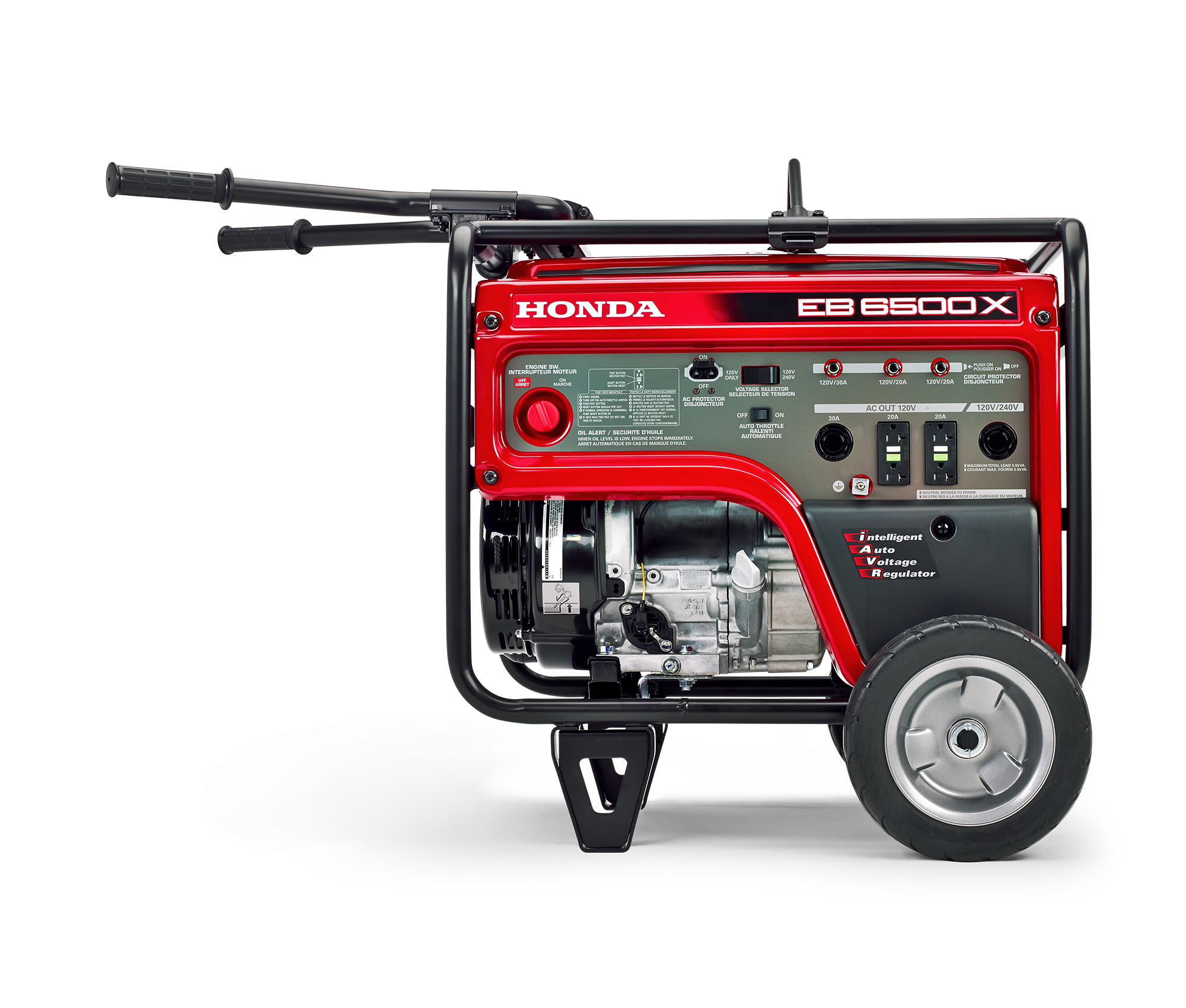

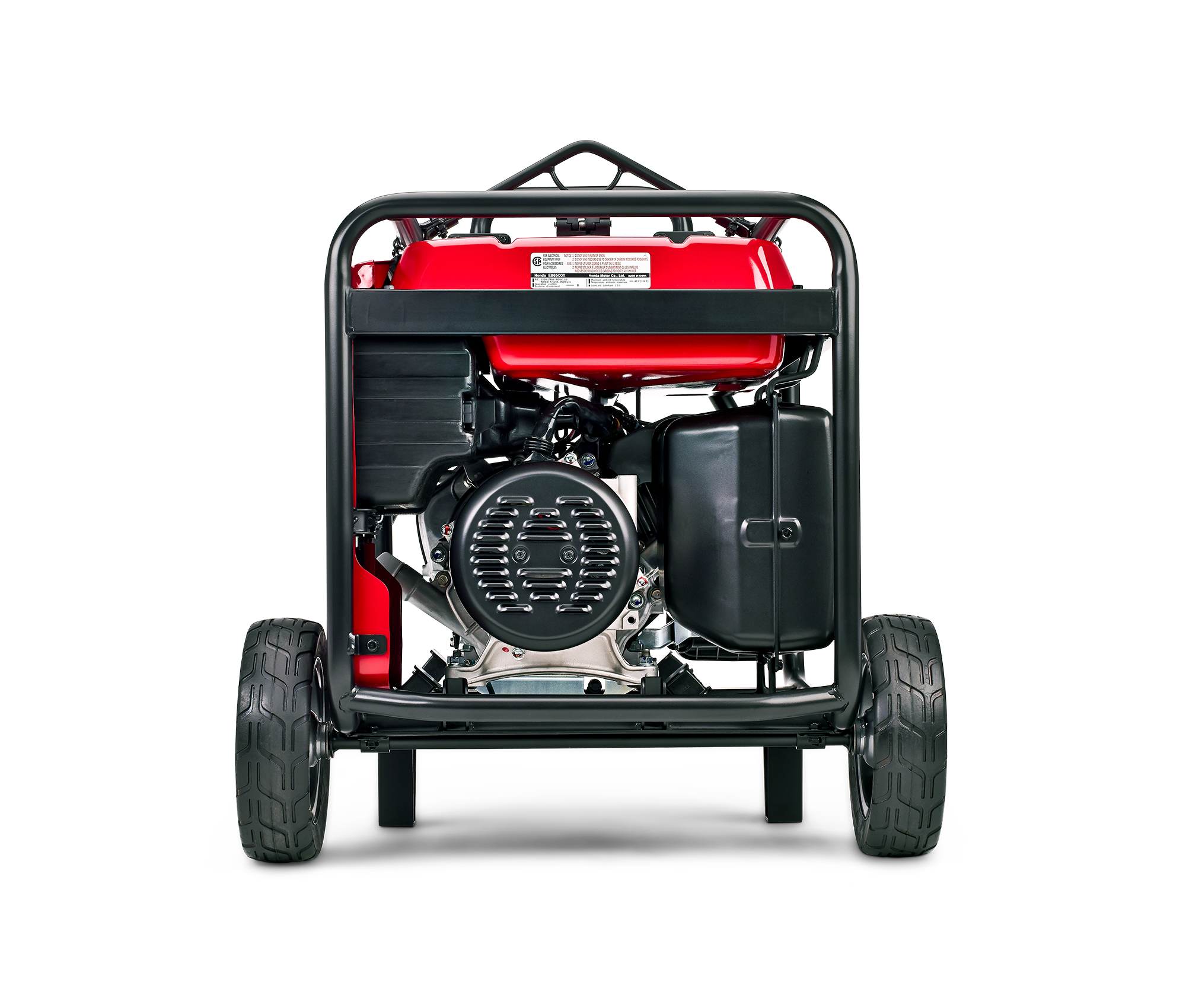

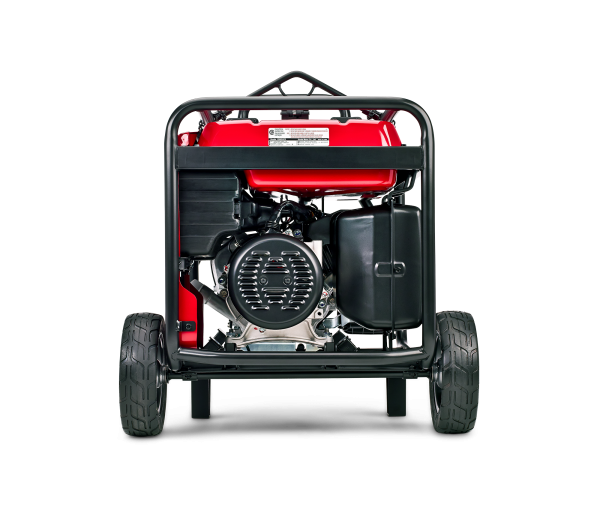

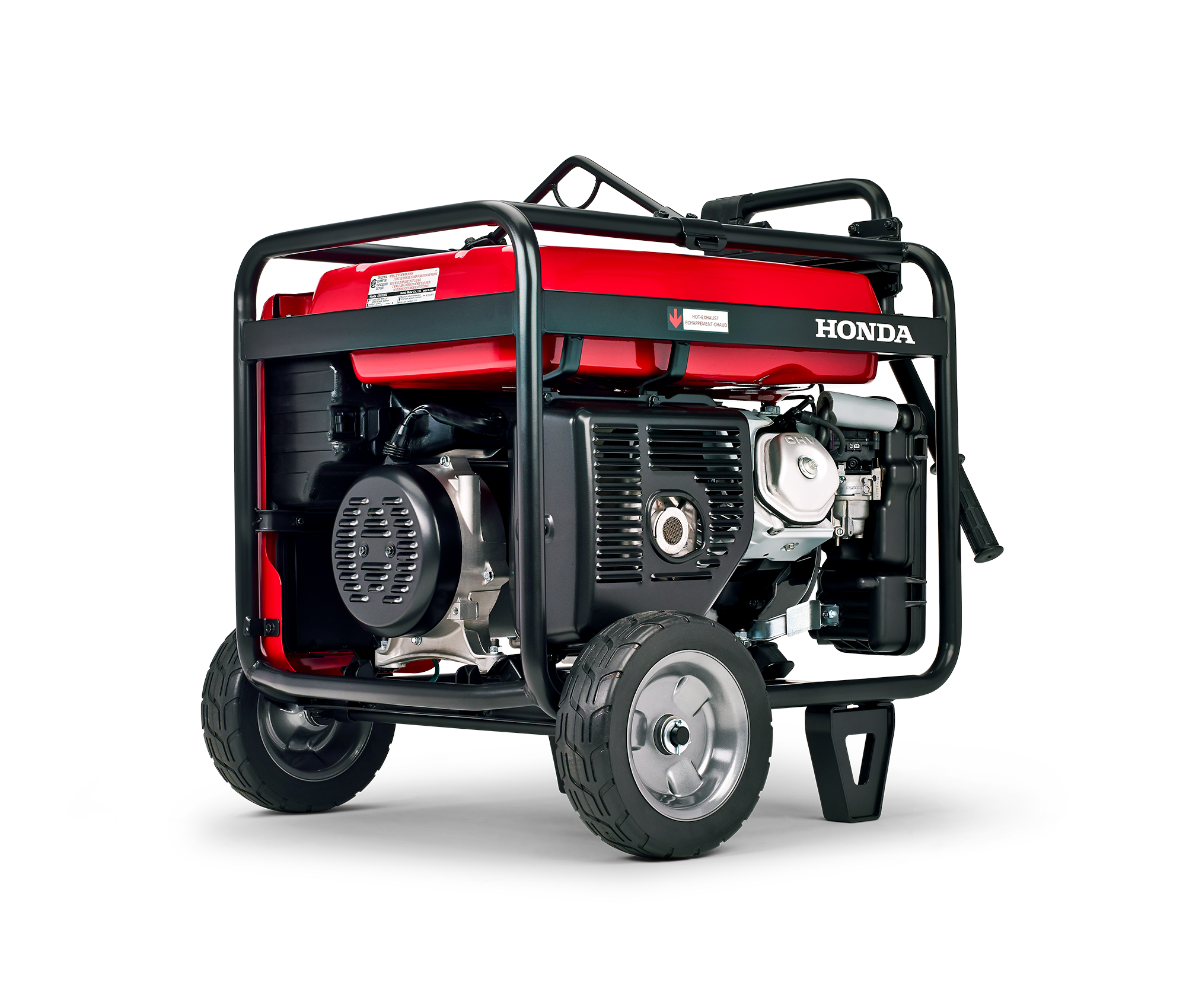

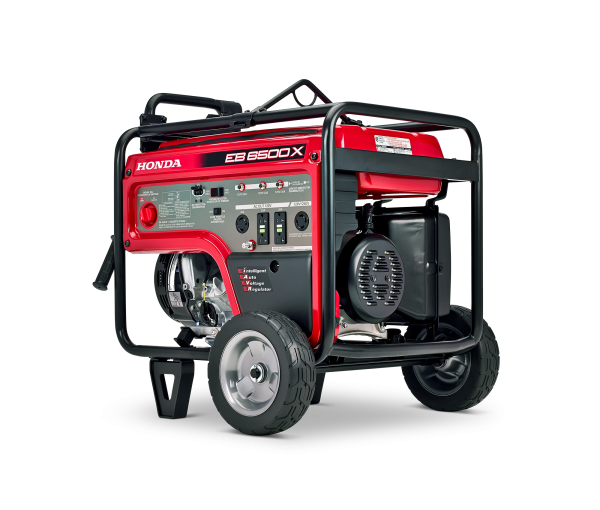

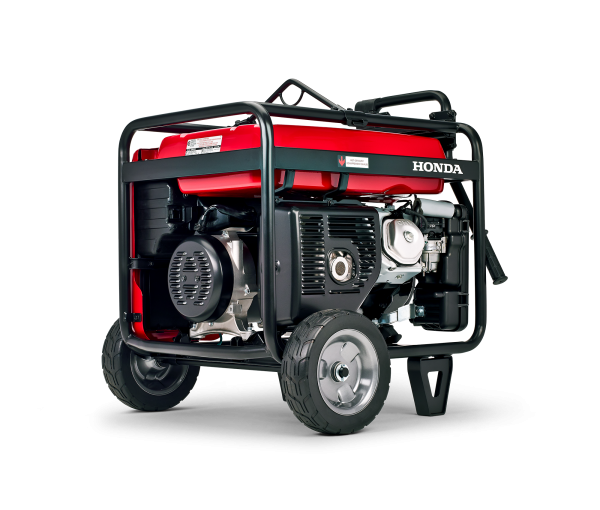

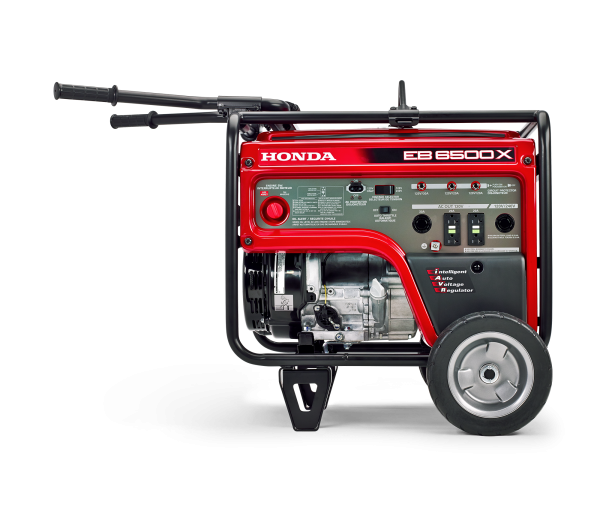

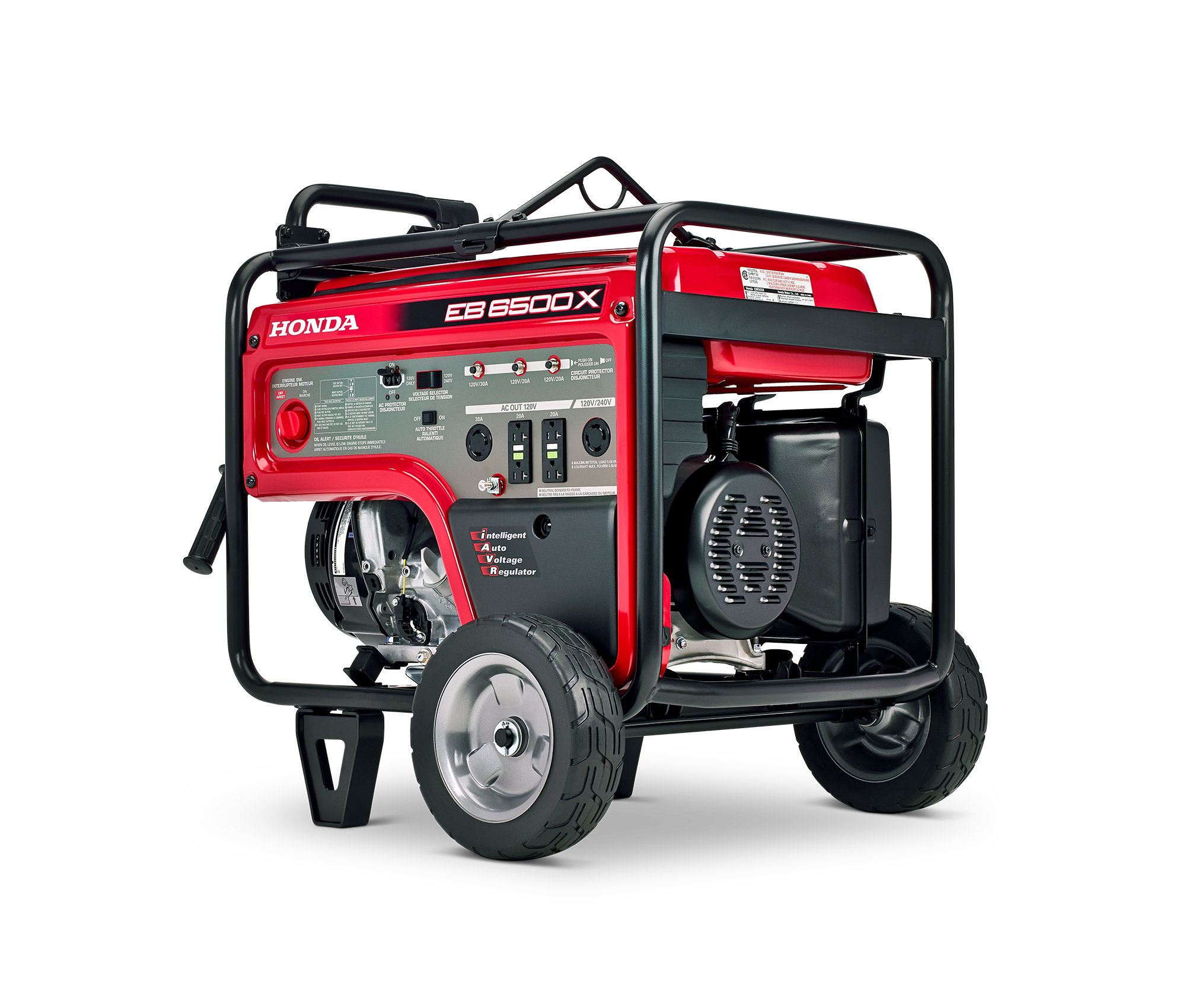

Honda EB6500XCT2

$3,249.00

*Freight and PDI Charges apply to all Honda products, they will be added at checkout.

The EB6500 has premium features for industrial usage and general-purpose applications in commercial and rental situations.

Categories: Honda, Honda Generator

Description
Reviews (0)

Highlights –

AC Voltage Available – 120 / 240
Approximate Running Time (hr) / Tankful – 6.9** / 10.4****
Cold Climate Technology – Standard
Dry Weight – 97.2 kg (214.3 lbs.)

Features –

Dual voltage power with premium features and GFCI (Ground Fault Circuit Interrupter) protection on duplex receptacles
6,500 watts maximum AC output
Powerful, easy-start Honda iGX390 commercial-grade engine
Auto-throttle further extends running time by automatically adjusting engine speed to idle when under no load
Standard wheel kit with positive lock folding handles for easy transportation and convenient, compact storage
Cold Climate Technology^TM aids continuous running in cold weather conditions
Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage (7,000 watts for 10 seconds to start larger equipment)
Voltage Selector Switch allows both 120 V and 240 V output, or total generator output to be available through any of the 120 volt outlets, limited only by the capacity of the individual outlet for powering devices with larger wattage requirements.
Hanger kit/lifting eye for easier moving around the job site

Electrical

Generator Type: Brush type

Maximum AC Output (Watts): 6,500

AC Voltage Available: 120 / 240

Maximum Continuous AC Output (Watts): 5,500 7,000 (iAVR)

Max. Rated AC Amperage @ 120 V / 240 V: 45.8 / 22.9 (58.3 / 29.2 for 10 sec. iAVR)

Ground Fault Circuit Interrupter (GFCI): Standard

Frequency (Hertz): 60

Automatic Voltage Regulator: Standard iAVR (Intelligent Automatic Voltage Regulator)

DC Output Volts / Amps: N/A

Common Duplex Receptacle Specifications: 40 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles. Maximum of 20 amps available from each GFCI duplex receptacle.

DC Receptacle Specifications: N/A

DC Charging Cable: N/A

High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications: This receptacle will supply 30 amps at 120 VAC continuously. This receptacle will supply 22.9 amps (5.5 kVA) at 240 VAC continuously.

Engine

Engine Type: Honda iGX390T2 OHV, 4-stroke, air-cooled

Displacement: 389 cc

Starting System: Manual recoil

Low Level Oil Alert System: Standard

Auto Throttle: Standard

Remote Start Capability: No

Fuel Tank Capacity: 23.5 litres (5.17 Imp. gal.)

Additional Information

Transport Wheels: 2 Wheel standard

Lifting Hook: Standard

Battery: N/A

Approximate Running Time (hrs.) / Tankful: 6.9** / 10.4****

Rated Fuel Consumption (litres/hr): 3.40**

Noise Level dB(A) (1.5 m to 7 m): 73**

Length (Without Handles and Wheels): 681 mm (26.8 in.)

Length (With Handles and Wheels): 1,051 mm (41.4 in.)

Width (Without Handles and Wheels): 530 mm (20.9 in.)

Width (With Handles and Wheels): 706 mm (27.8 in.)

Height (Without Lift-Hook): 719 mm (28.3 in.)

Height (With Lift-Hook): 773 mm (30.4 in.) standard

Dry Weight: 97.2 kg (214.3 lbs.)

Cold Climate Technology: Standard
