Honda EG5000

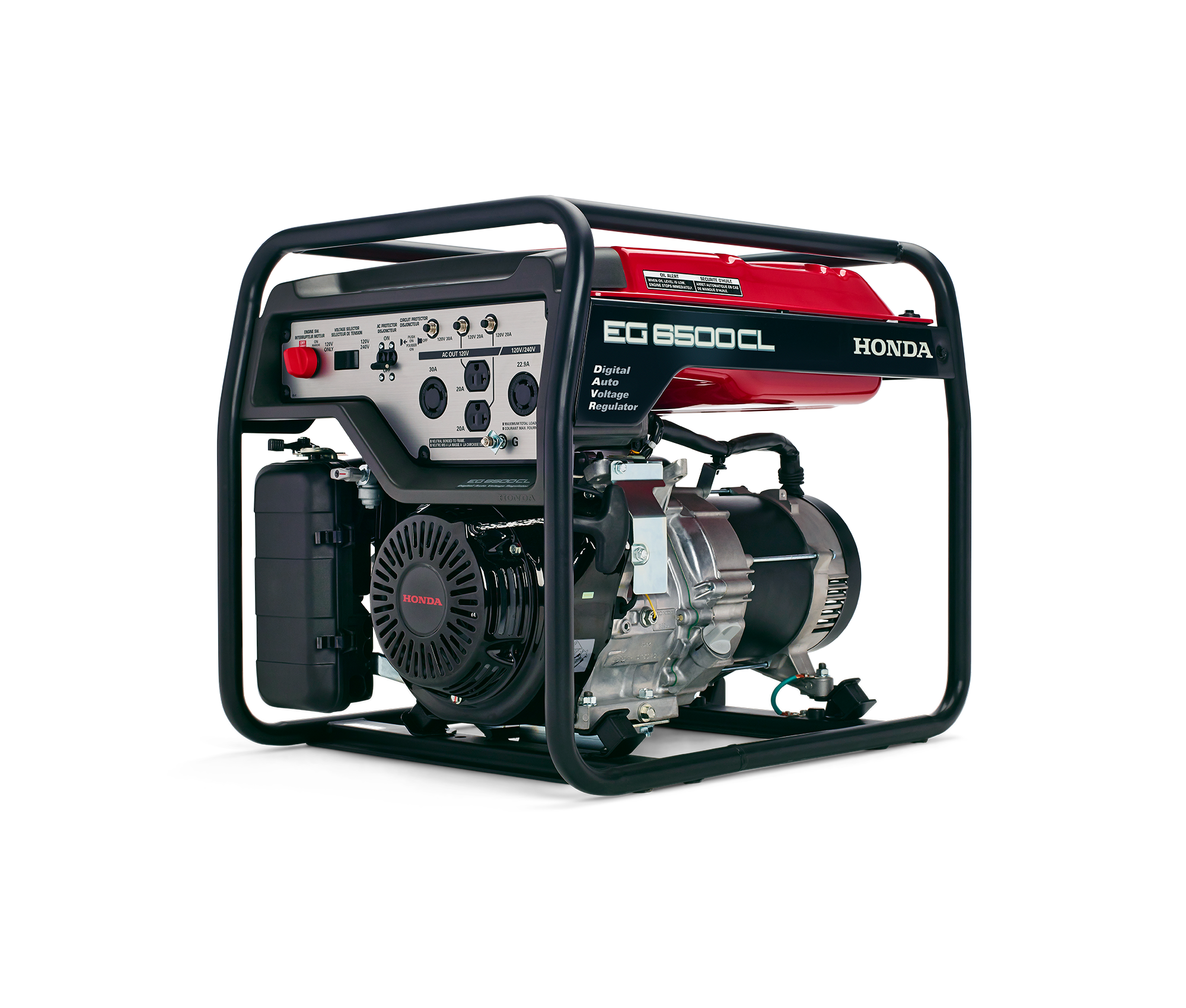

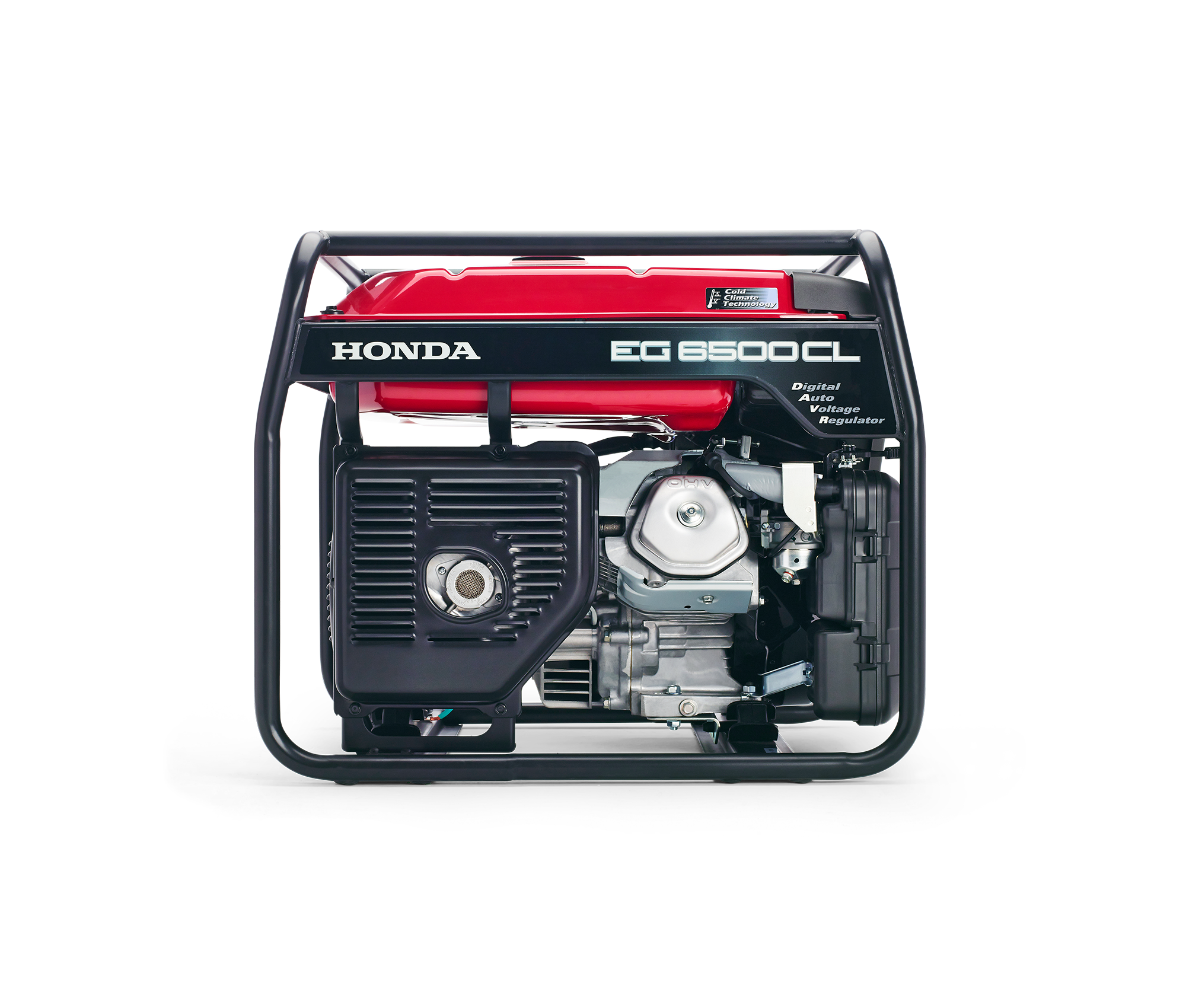

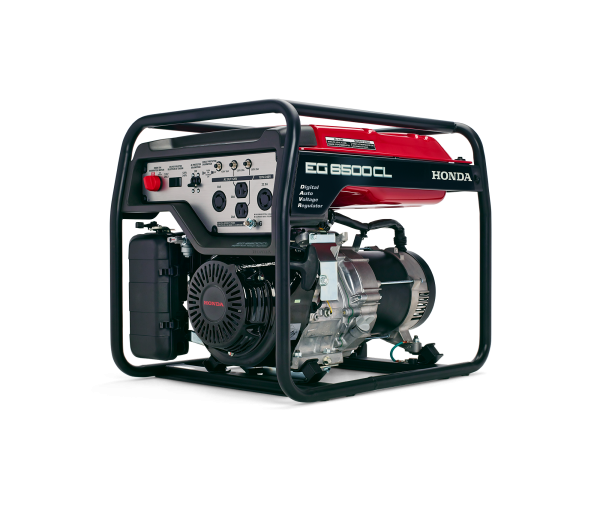

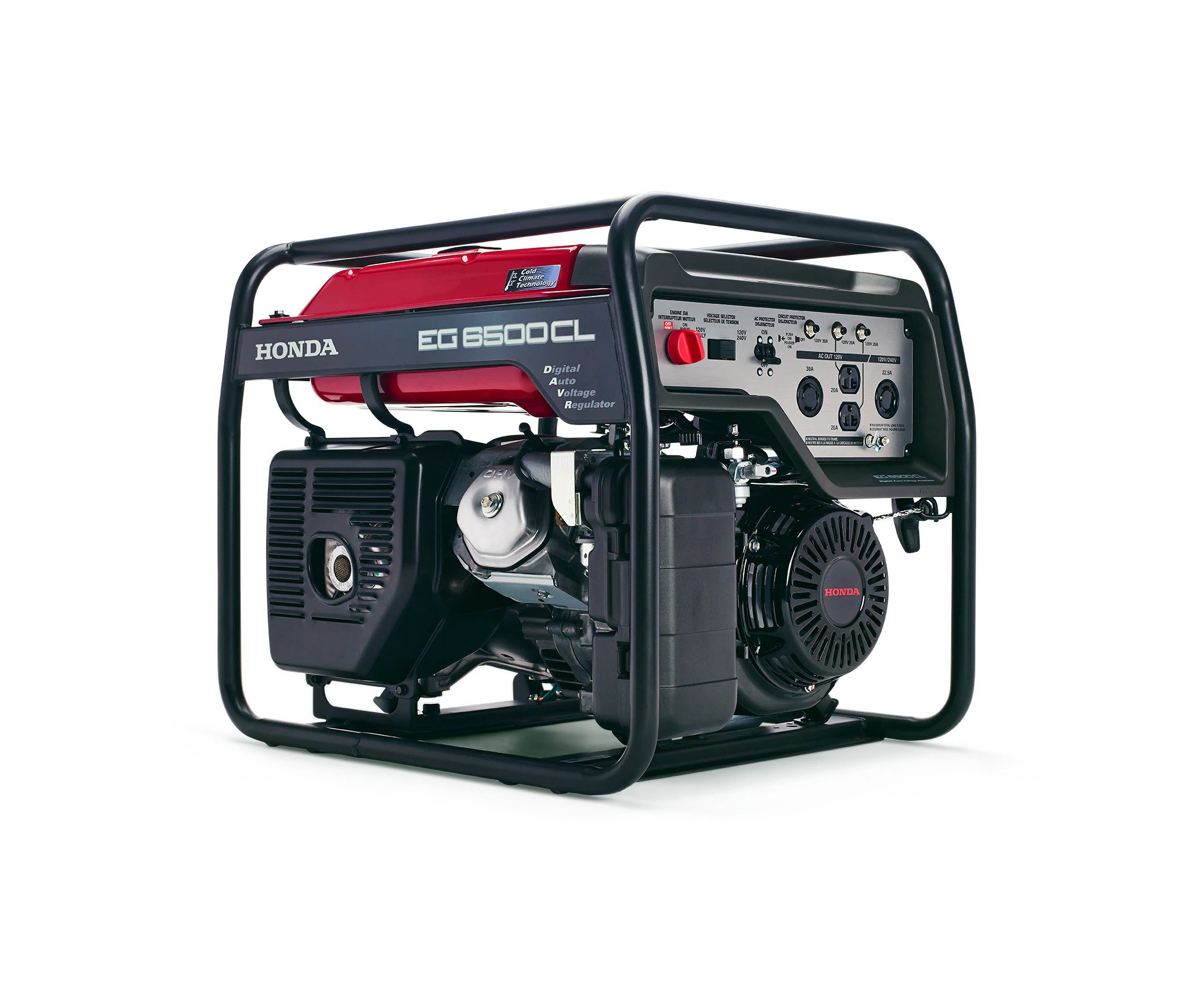

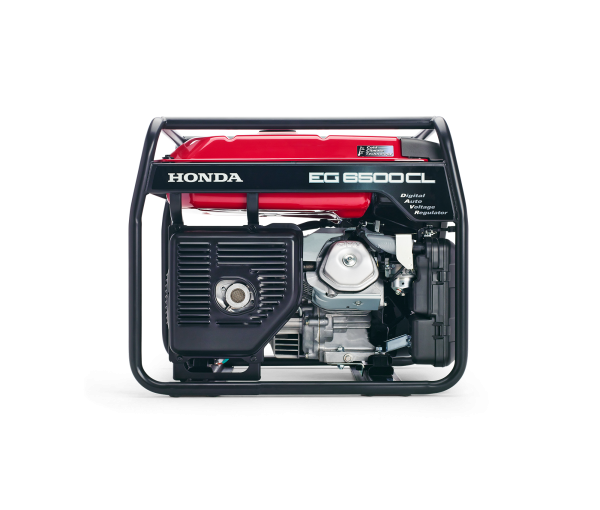

Honda EG6500

~~$2,199.00~~ $1,999.00

The EG6500 provides all the quality and reliability you expect from Honda, for budget-minded customers.

Categories: Honda, Honda Generator

Description
Reviews (0)

Highlights –

AC Voltage Available – 120 / 240
Approximate Running Time (hrs.) / Tankful – 7.1** / 10****
Cold Climate Technology – Standard
Dry Weight – 80 kg (176.4 lbs.)

Features –

Economical, portable power with traditional Honda durability and performance
6,500 watts maximum AC output
Reliable, easy-start Honda GX390 commercial-grade engine
Honda exclusive Digital Auto Voltage Regulator (DAVR) offers stable power delivery for increased performance
Voltage Selector Switch allows both 120 V and 240 V output, or total generator output to be available through any of the 120 volt outlets, limited only by the capacity of the individual outlet for powering devices with larger wattage requirements.
10 hour continuous running time at 50% load with large 24-litre tank
Cold Climate TechnologyTM aids continuous running in cold weather conditions

Electrical

Generator Type: Brush type

Maximum AC Output (Watts): 6,500

AC Voltage Available: 120 / 240

Maximum Continuous AC Output (Watts): 5,500

Max. Rated AC Amperage @ 120 V / 240 V: 45.8 / 22.9

Ground Fault Circuit Interrupter (GFCI): N/A

Frequency (Hertz): 60

Automatic Voltage Regulator: Standard digital (DAVR)

DC Output Volts / Amps: N/A

Common Duplex Receptacle Specifications: 40 amps/120 VAC continuous is available as combined total from these two AC receptacles. Maximum of 20 amps available from each single receptacle.

DC Receptacle Specifications: N/A

DC Charging Cable: N/A

High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications: This receptacle will supply 30 amps at 120 VAC continuously. This receptacle will supply 22.9 amps at 240 VAC and 45.8 amps at 120 VAC continuously.

Engine

Engine Type: Honda GX390T2 OHV, 4-stroke, air-cooled

Displacement: 389 cc

Starting System: Manual recoil

Low Level Oil Alert System: Standard

Auto Throttle: N/A

Remote Start Capability: No

Fuel Tank Capacity: 24 litres (5.28 Imp. gal.)

Additional Information

Transport Wheels: Optional (P/N 06710-Z22-A40ZA)

Lifting Hook: Optional (P/N 06810-Z22-A30ZA)

Battery: N/A

Approximate Running Time (hrs.) / Tankful: 7.1** / 10****

Rated Fuel Consumption (litres/hr): 3.38**

Noise Level dB(A) (1.5 m to 7 m): 74**

Length (Without Handles and Wheels): 681 mm (26.8 in.)

Length (With Handles and Wheels): N/A

Width (Without Handles and Wheels): 530 mm (20.9 in.)

Width (With Handles and Wheels): N/A

Height (Without Lift-Hook): 571 mm (22.5 in.)

Height (With Lift-Hook): N/A

Dry Weight: 80 kg (176.4 lbs.)

Cold Climate Technology: Standard

** / ***: **At max. rated output (continuous) in Watts.
****At 50% rated output (continuous) in Watts.
