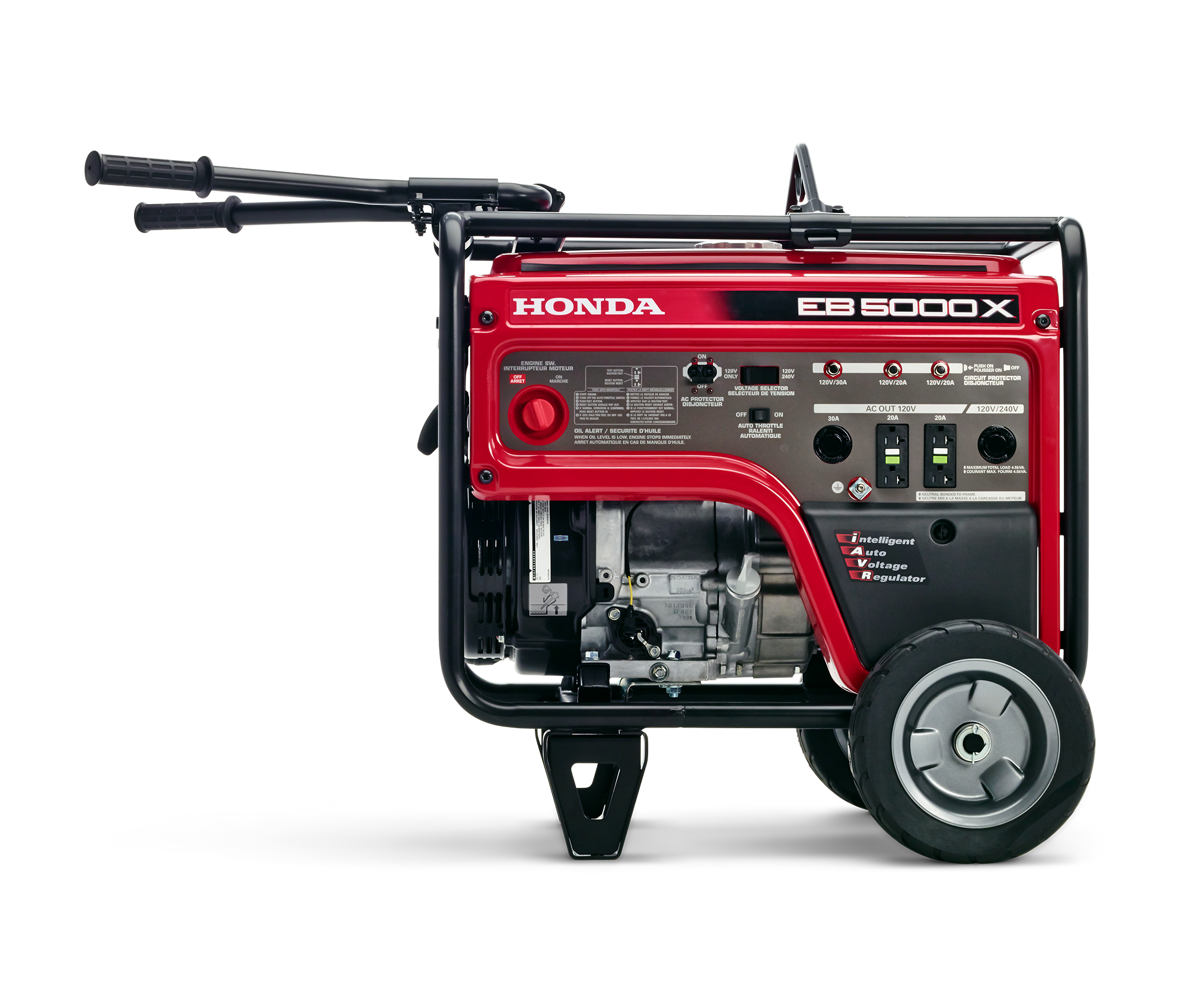

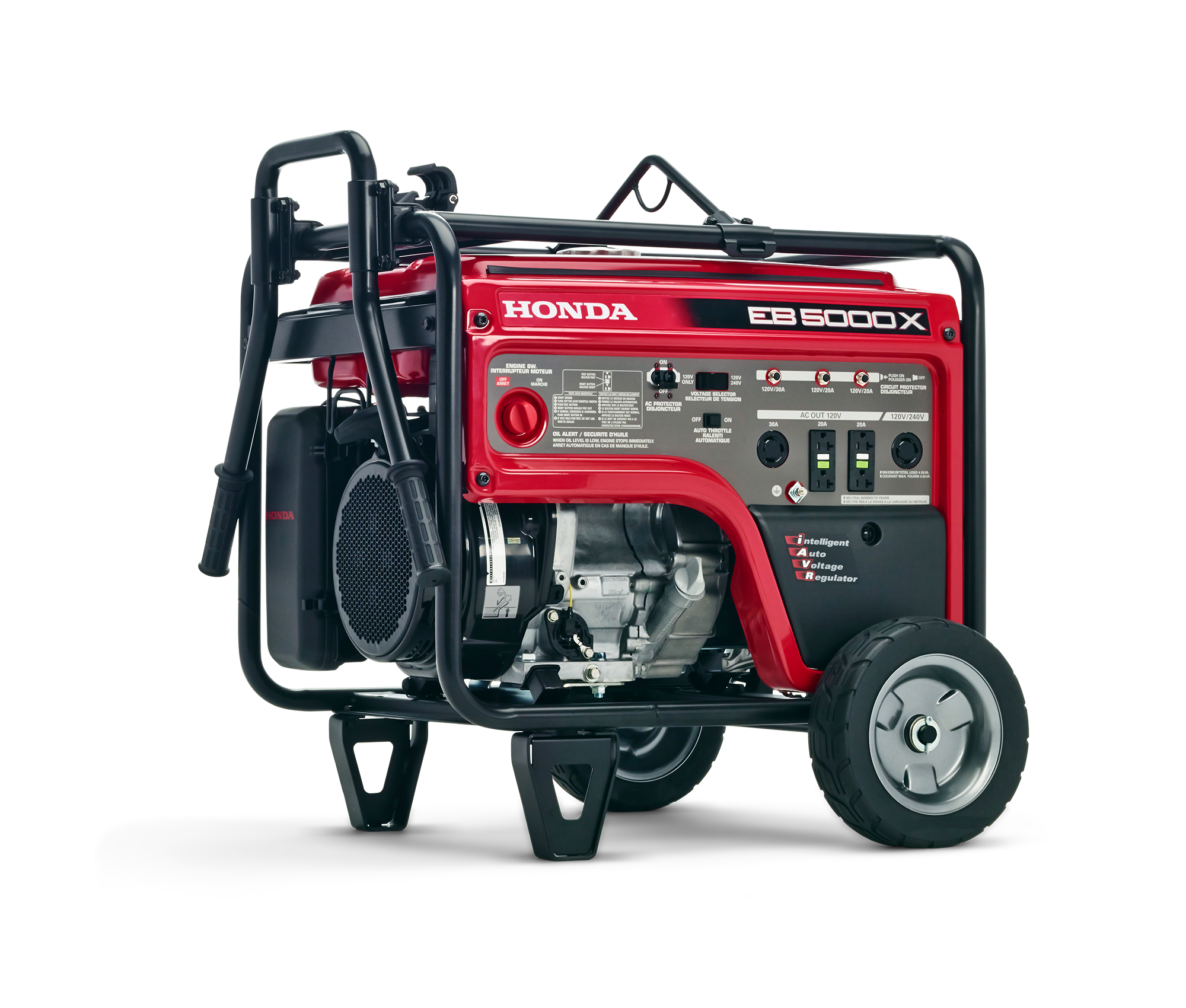

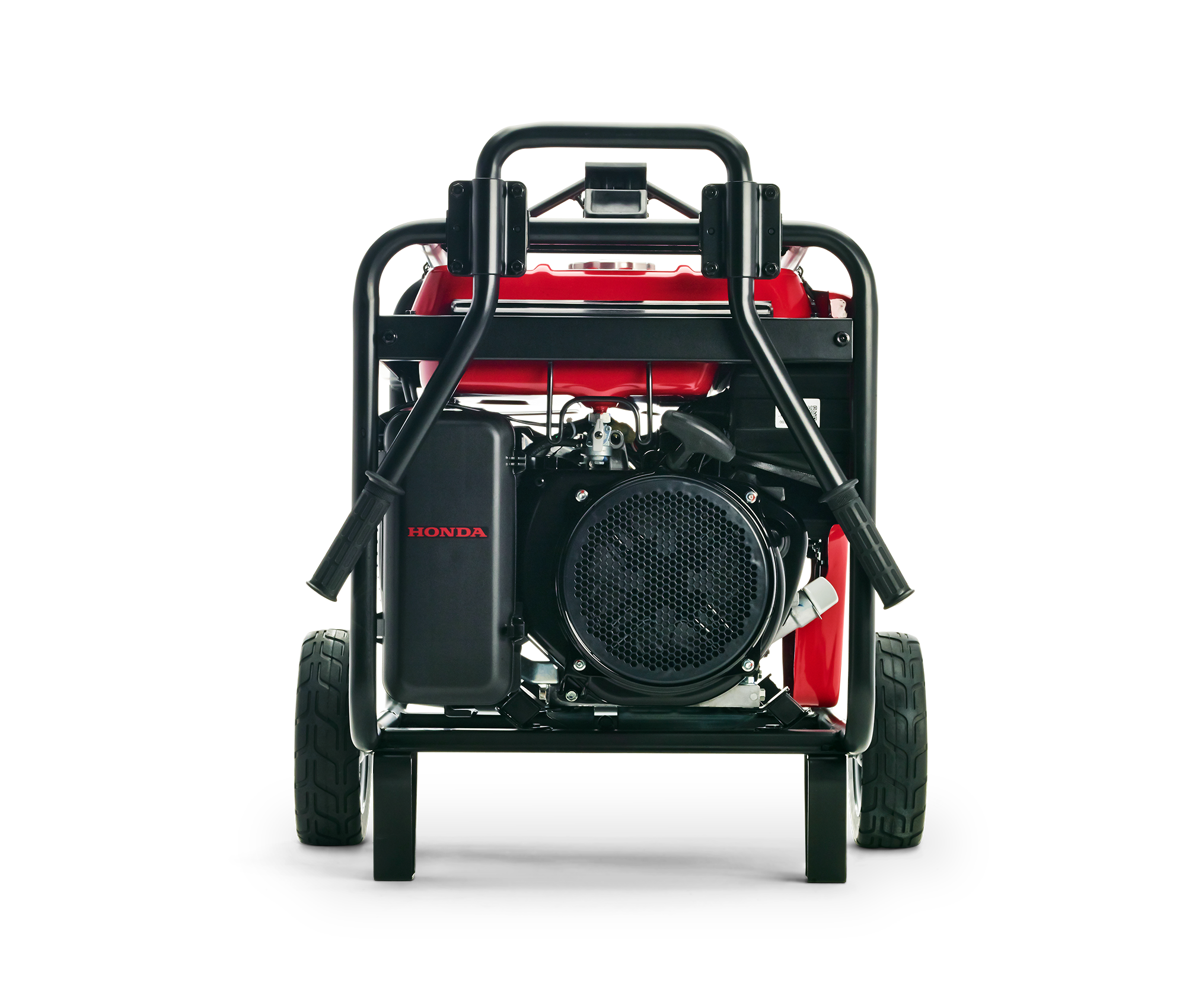

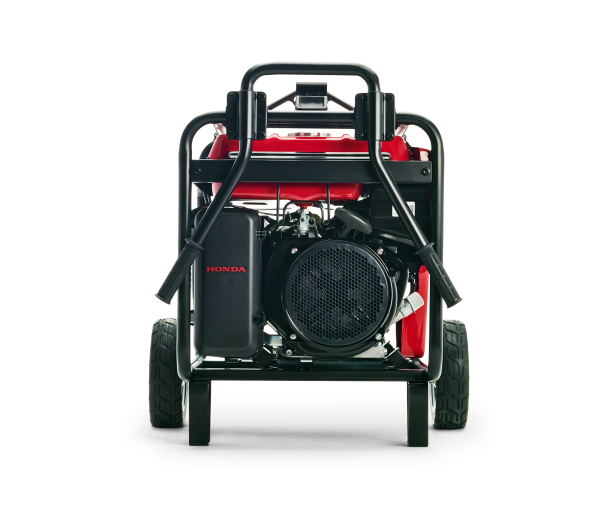

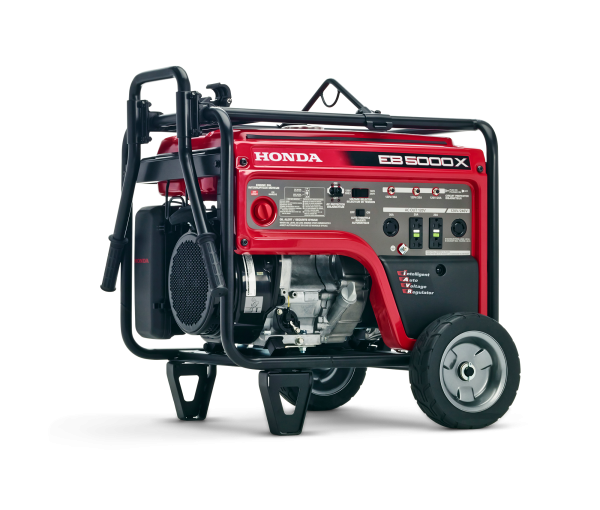

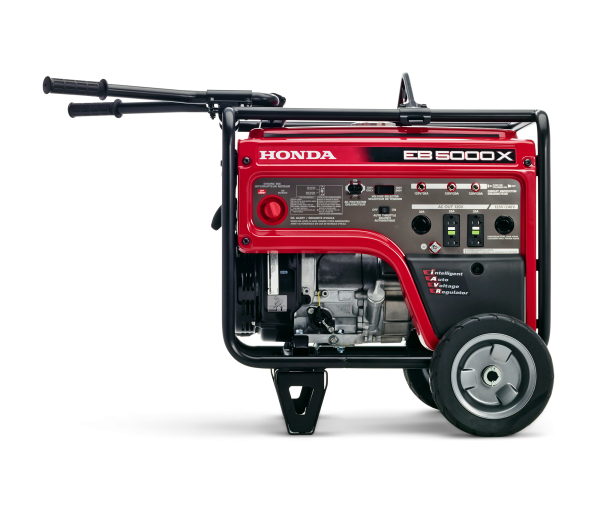

Honda EB5000X3CT2

Add to wishlist
> SKU: N/A
*Freight and PDI Charges apply to all Honda products, they will be added at checkout.

The EB5000 has premium features for industrial usage and general purpose applications in commercial and rental situations.

Add to wishlist
Compare

$2,899.00

Out of stock

Compare

Description

Highlights –

  • AC Voltage Available – 120 / 240
  • Approximate Running Time (hr) / Tankful – 8.1** / 11.2****
  • Cold Climate Technology – Standard
  • Dry Weight – 94.6 kg (208.6 lbs.)

Features –

  • Dual voltage power with premium features and GFCI (Ground Fault Circuit Interrupter) protection on duplex receptacles
  • 5,000 watts maximum AC output
  • Powerful, easy-start Honda iGX390 commercial-grade engine
  • Auto-throttle further extends running time by automatically adjusting engine speed to idle when under no load
  • Standard wheel kit with positive lock folding handles for easy transportation and convenient, compact storage
  • Cold Climate TechnologyTM aids continuous running in cold weather conditions
  • Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage (7,000 watts for 10 seconds to start larger equipment)
  • Voltage Selector Switch allows both 120 V and 240 V output, or total generator output to be available through any of the 120 volt outlets, limited only by the capacity of the individual outlet for powering devices with larger wattage requirements.
  • Hanger kit/lifting eye for easier moving around the job site
Generator Type
Brush type
Maximum AC Output (Watts)
5,000
AC Voltage Available
120 / 240
Maximum Continuous AC Output (Watts)
4,500 7,000 (iAVR)
Max. Rated AC Amperage @ 120 V / 240 V
37.5 / 18.8 (58.3 / 29.2 for 10 sec. iAVR)
Ground Fault Circuit Interrupter (GFCI)
Standard
Frequency (Hertz)
60
Automatic Voltage Regulator
Standard iAVR (Intelligent Automatic Voltage Regulator)
DC Output Volts / Amps
N/A
Common Duplex Receptacle Specifications
37.5 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles. Maximum of 18.8 amps available from each GFCI duplex receptacle.
DC Receptacle Specifications
N/A
DC Charging Cable
N/A
High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications
This receptacle (NEMA # L5-30R) will supply 30 amps at 120 VAC continuously. This receptacle (NEMA # L14-30R) will supply 18.8 amps (4.5 kVA) at 240 VAC continuously.
Engine Type
Honda iGX390T2 OHV, 4-stroke, air-cooled
Displacement
389 cc
Starting System
Manual recoil
Low Level Oil Alert System
Standard
Auto Throttle
Standard
Remote Start Capability
No
Fuel Tank Capacity
23.5 litres (5.17 Imp. gal.)
Transport Wheels
2 Wheel standard
Lifting Hook
Standard
Battery
N/A
Approximate Running Time (hrs.) / Tankful
8.1** / 11.2****
Rated Fuel Consumption (litres/hr)
2.90**
Noise Level dB(A) (1.5 m to 7 m)
72**
Length (Without Handles and Wheels)
681 mm (26.8 in.)
Length (With Handles and Wheels)
1,043 mm (41.1 in.)
Width (Without Handles and Wheels)
530 mm (20.9 in.)
Width (With Handles and Wheels)
706 mm (27.8 in.)
Height (Without Lift-Hook)
719 mm (28.3 in.)
Height (With Lift-Hook)
773 mm (30.4 in.) standard
Dry Weight
94.6 kg (208.6 lbs.)
Cold Climate Technology
Standard
