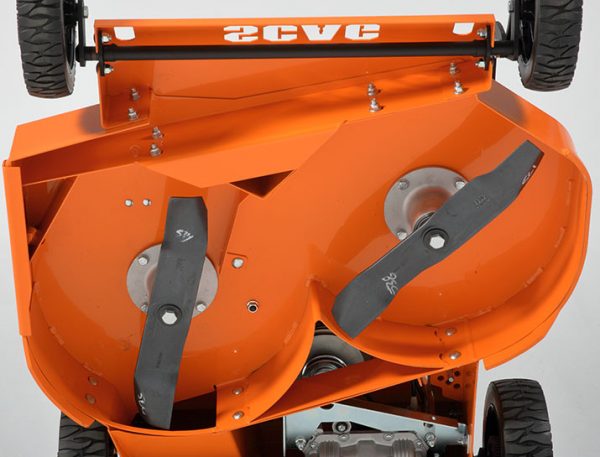

SIMPLIFIED DECK DRIVE SYSTEM
An offset blade design is less complex and easier to maintain than traditional timed deck setups. This more robust system results in potential belt replacements taking less than half the amount of time to repair/replace compared to timed deck systems. Image shown with bagging baffle.

$3,499.00

Compare

Description

Model Description
SFC30-7CV-S 30" fully fabricated steel cutter deck, Kohler 224CV engine – recoil-start engine, Swivel Front Caster
Product Dimensions SFC30 SFC30 Swivel
Length – Transport (handles in upright transport position) 41" 44"
Length – Minimum (handles in highest operating position) 66" 69"
Length – Max (handles in lowest operating position) 73.5" 76.5"
Tracking Width 28.75" 28.75"
Width (w/ discharge chute) 36.75" 36.75"
Width (w/ discharge block off plate) 31.5" 31.5"
Height – Lowest Operating 36.75" 36.75"
Height – Max Operating 45.25" 45.25"
Height – w/ Handle Bar in Storage Position 57.5" 57.5"
Operating Weight – Bagging 220 lbs. 233 lbs.
Operating Weight – Mulching 214 lbs. 227 lbs.
Operating Weight – Discharging 213 lbs. 226 lbs.
Specification SFC30
General Total Fuel Capacity 1 gallon (0.37 gallon capacity for California models)
Rear Tires 10.5" x 3" rubber tire w/ glass-filled polypropylene wheel
Front Tires 9” x 2.25” rubber tire w/ glass-filled polypropylene wheel
Drive System Drive System Type GT MV 702 Transmission
Forward Ground Speed Up to 4 mph
Parking Brake Hand lever
Deck Cutting Widths 30"
Type Extra-strong, fully fabricated and welded steel cutter deck. Offset blade, non-timed deck setup.
Cutting Height 1.5" to 5" in .25" increments.
Blade Type Optimized for maximum performance whether discharging, mulching or bagging

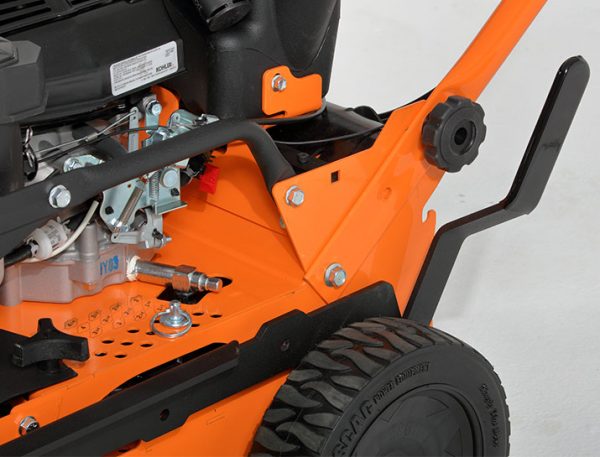

Deck Lift Hand lever. Single-point adjustment.
Construction 14-gauge, grade 100, Military Grade steel deck shell with 12-gauge spindle reinforcement plate. ¼” trim side reinforcement bar offers extra protection against impacts.
Spindles Aluminum housing with sealed ball bearings.
Blade Engagement Blade brake clutch allows operator to disengage cutter blades without shutting off the machine.
Discharge, Mulch, Bag Standard
Bag Capacity 2.5 Bushels
