Scag 7B03

General Information

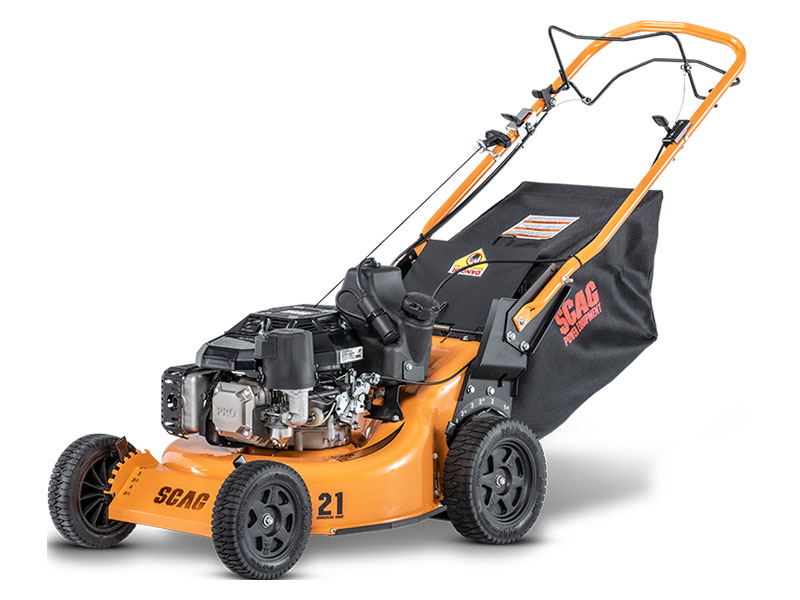

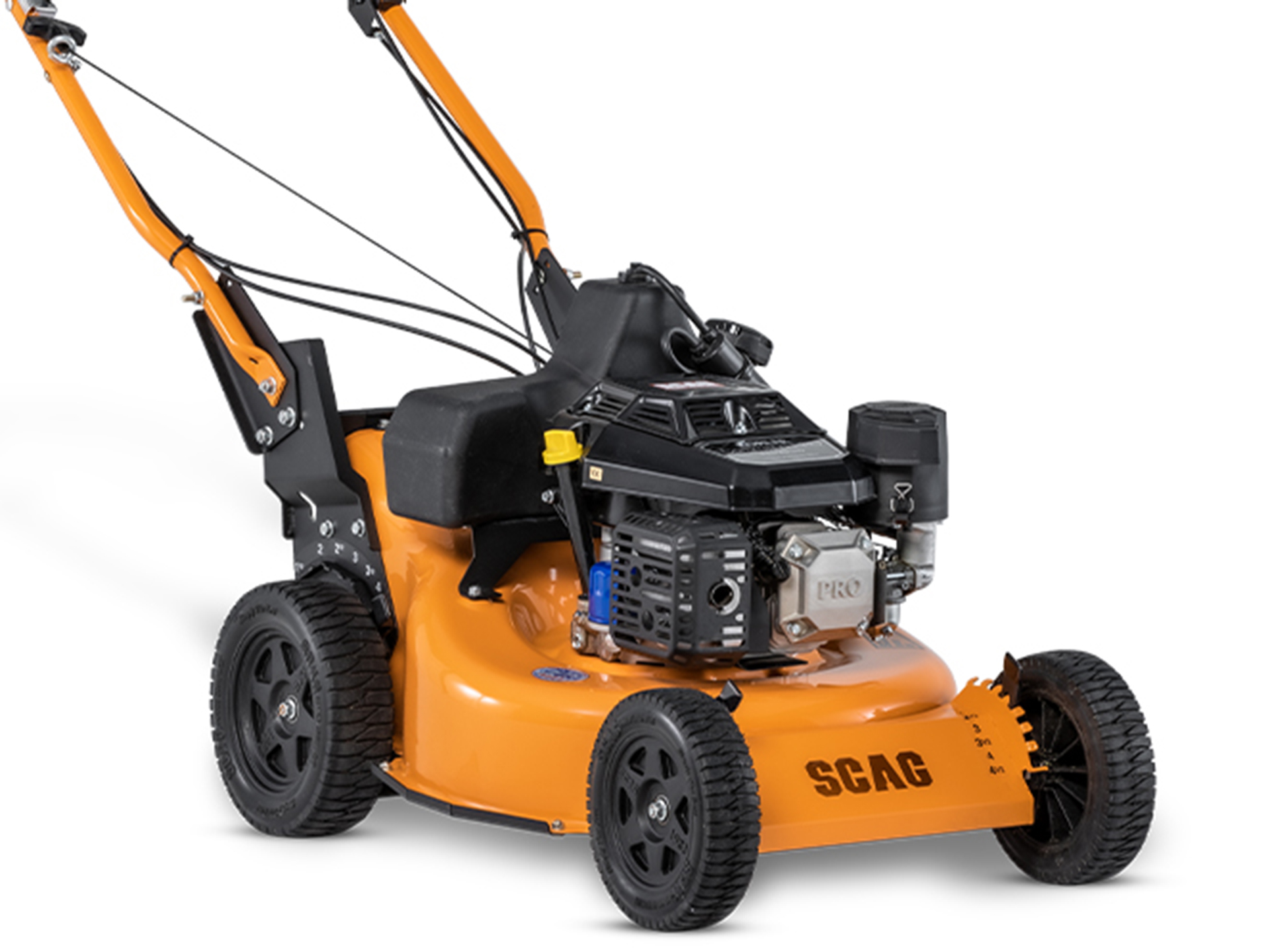

ManufacturerSCAG Power EquipmentModelSFC-21 21 in. Kohler Command PRO CV224
Model CodeSFC-21-7CVColorOrange
Body
Safety FeaturesHandle actuated operator presence system
Drivetrain
Transmission/Drive
GT MG 512 transmission, 3-speed

Transmission output shaft – 0.50 in. diameter

Transmission SpeedGovernor – Mechanical governor with variable control set at 3,300 rpm, idle set at 1,500 rpm
Travel SpeedForward – Up to 4.25 mphWheels/Tires
Front – 9 x 2.25

Drive – 10.5 x 3

Engine
Engine MakeKohler®Engine ModelCommand PRO® CV224
Engine Type4 cycle gas, OHV, vertical shaftCoolingAir
CylindersSingle, One with cast-iron cylinder boreHorsepower7 hp @ 3,300 rpm
Displacement224 ccAir CleanerQuad-Clean™ four-stage, cyclonic air filter
StarterEasy-Pull™ recoil startLubricationOil pump group – Steel oil pump, full pressure with spin-on oil filter
Fuel Capacity1 gal. (3.785 l) plastic tank
Measurements
Length
In operating position – 63 – 68.5 in.

In storage position – 41 in.

Width23.25 in.
Height
Low in operating position – 32.75 in.

High in operating position – 43.5 in.

In storage position – 22 in.

Weight
With bagger – 143 lb.

Without bagger – 138 lb.

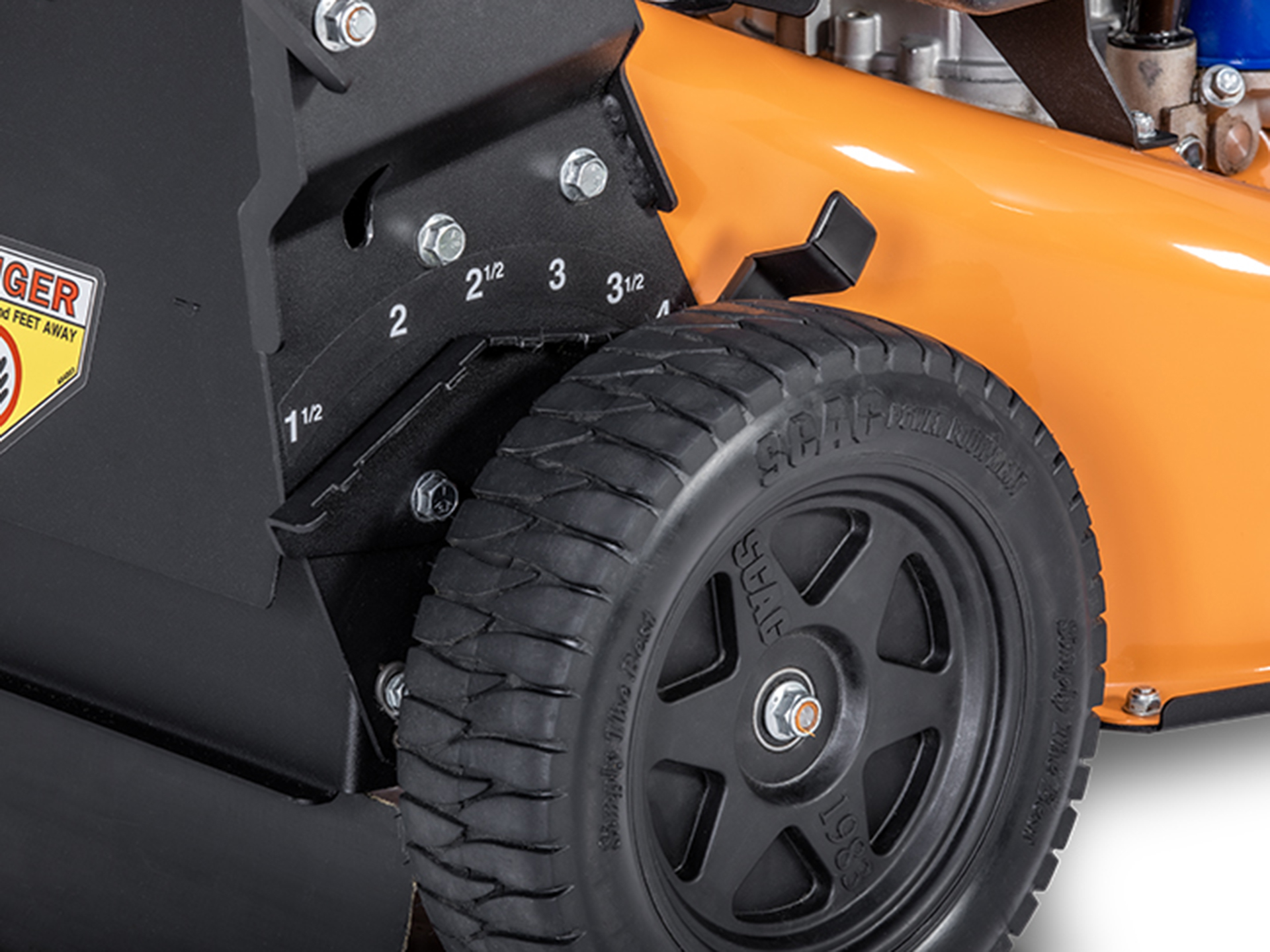

Track Width21.2 in.Mowing Height Adjustments1.5 to 4.5 in. in 0.5 in. increments
Mowing WidthTrue – 21 in. (53.34 cm)
Operational
SteeringVariable drive control bar and 3-speed selector lever on handlebarDeck Construction
14 ga. deck with 14 ga. replaceable guards for strength and longevity. Deep draw stamped

Deck type – High-vacuum, high-capacity design

Thickness – 14 ga.

Blades
Cutter – 0.1345 in. thick, milled edge, wear resistant

Engagement – Blade control bar controlled Blade Brake Clutch (BBC). Connected to cutter blade

Blade Brake ClutchHeavy-duty

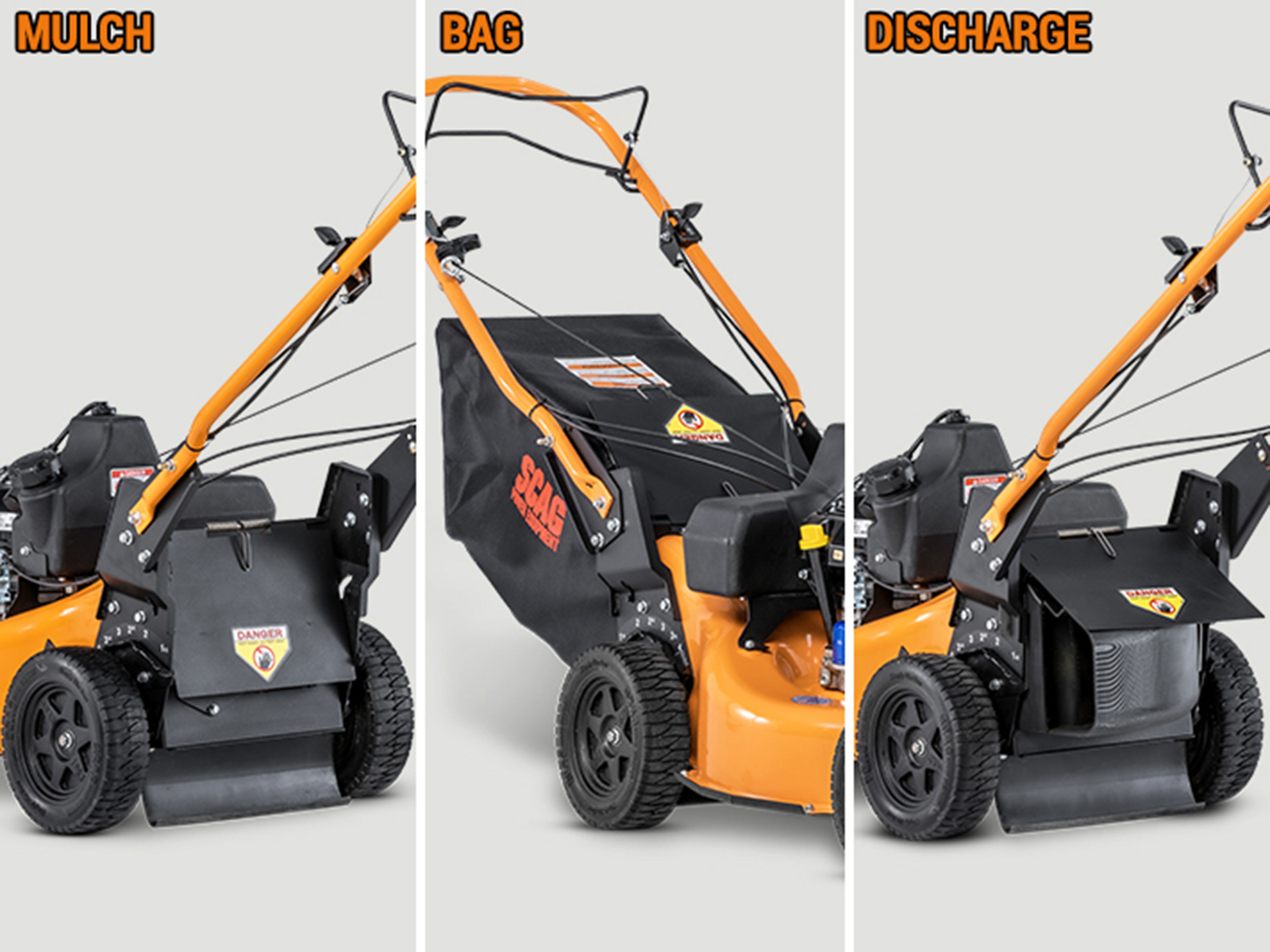

DischargeRear, extra wide discharge openingMulchingPlug
Other
Includes
Exhaust – Front discharge muffler with guard

Handle bars – 1 in. diameter, thick wall tubing, 3-position adjustable

Fabric grass catcher – 2.74 cu. ft. (2.2 bu.)

Warranty
1-year commercial machine

3-year or 500-hr. non-commercial machine

SR engine

90-day wear item and rental use

Engine
